Electric boiler 240 kg/h - 176 kW
Tibbloc’s range of rental electric boilers offers a heating solution that’s easy to connect and quick to heat up, for indoor installation and for a rental period that’s tailored to your needs.
Tibbloc offers its electric boilers that are quick and easy to install for applications such as heating concrete slabs, drying concrete slabs for underfloor heating or frost protection.

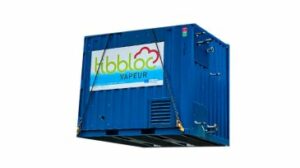

Boiler in 10'' container, steel body
Water softeners, salt tanks and chemical dosing pumps
Distribution panel with control system
Standard emergency feed pumps
Hoses
Power supply cables
| TECHNICAL DATA | ||
|---|---|---|
| Flow | kg/h | 240 |
| Maximum allowable pressure | bar | 8.5 |
| Maximum operating pressure | bar | 7 |
| Stainless steel food tarpaulin | Litres | 200 |
| Food grade pump | 1x | |
| Purge cooling tank | Litres | 200 |
| CONNECTIONS | ||
| Steam start-up | Flange DN25 PN16 | |
| Untreated water | DN25 male thread | |
| Customer buffer tank inlet | DN25 PN16 | |
| Condensate return | DN25 male thread | |
| Evacuation | DN50 PN16 | |
| Power supply | kW | 180 (3x60) |
| Voltage | V | 400V Tri+T |
| Nominal current | A | 320 |
| SIZE | ||
| Length x Width x Height | m | 3.15 x 2.45 x 2.60 |
| Empty weight | kg | 3 500 |
| Loaded weight | kg | 2 000 |
| Technical data for information purposes only |
