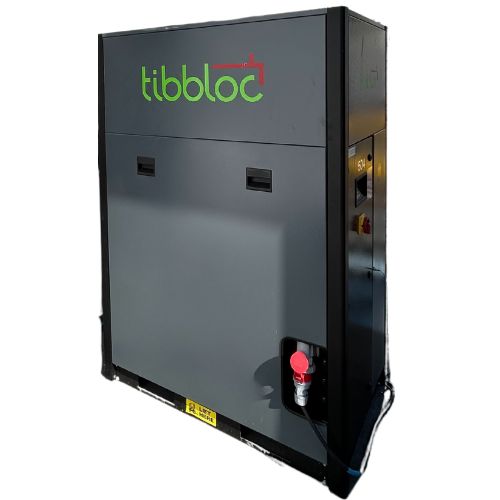

Air dryer rental up to 42 m³/min
Tibbloc is at the service of industry professionals
With over eighteen years’ industrial expertise in multi-energy rental (heating, cooling, steam, drying), we guarantee a responsive, professional rental service available 24/7 for your compressed air networks and maintenance.
Refrigerated air dryer : allows dew point adjustment down to +3°C, depending on settings and ambient conditions.
Integrated upstream and downstream filters : for optimum protection of the compressed air circuit.
With a pressure range from 4 to 16 bar : guarantees reliable, consistent operation, whatever the operating pressure.
KEY POINTS
Recent, high-performance equipment
Choice of rental duration, controlled costs
Immediate response to emergencies
Delivered, installed and commissioned by our teams
| TECHNICAL DATA | ||
|---|---|---|
| Pressure range | bar | 4 à 16 |
| Max. flow | m³/min | 42 |
| Maximum permissible air temperature | °C | 60 |
| Dew point (depending on condition) | °C | +3 |
| Pneumatic connection | °C | DN80 PN16 |
| Purge connection | °C | DN50 |
| Refrigerant | W | R134a |
| ELECTRICAL INFORMATION | °C | - 70 |
| Power supply | 400V TRI+T | |
| Frequency | Hz | 50 |
| Electrical connection | mm² | 4 x 6 |
| Maximum intensity | A | 20 |
| DIMENSIONS | mm | 1,740 x 2,360 x 2,310 |
| Length x Width x Height | m | 1.30 × 0.78 x 1.73 |
| Sound pressure level at 1 meter | dB(A) | 3 |
| Weight | kg | 392 |
