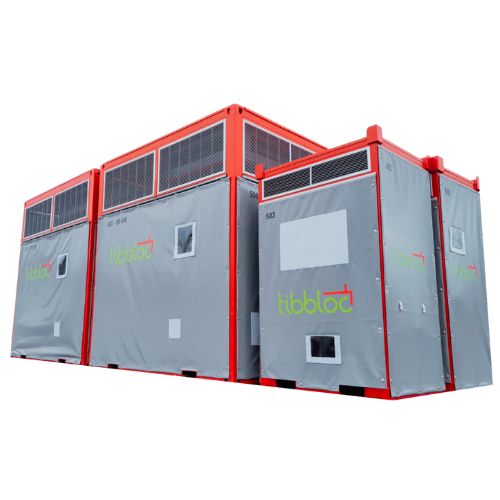

90 kW variable-speed air compressor up to 13.30 m³/min
Rental of industrial air compressors 100% oil-free to protect your processes.
Tibbloc offers you its new generation of air compressors, more efficient, energy-saving and with extended maintenance intervals.
Non-lubricated screw air compressor: reduces maintenance requirements and eliminates any risk of network contamination.
Designed for rental: with a reinforced chassis, this compressor comes with all the accessories needed for fast, plug & play installation, including pneumatic, electrical and flange connections.
Variable-speed flows up to 13.30 m³/min and pressures from 4 to 10 bar for a wide range of applications.
100% oil-free air – Class 0 : compliant with ISO8573-1 oil-, moisture- and particle-free. Ideal for industrial processes.
Our air dryers: can also be hired with dew points down to -70°C.
| TECHNICAL DATA | ||
|---|---|---|
| Nominal power | kW | 90 |
| Oil content - Class 0 | ISO8573-1 | |
| Variable-speed flows | m³/min | 5.05 - 13.30 |
| Operating pressures | bar | 4 à 10 |
| Pneumatic connection | Bars | DN65 PN16 |
| Consendat connection | 1" 1/4 | |
| ELECTRICAL INFORMATION | V | 400 V TRI + T |
| Power supply | mm² | 400V TRI+T |
| Electrical connection | mm² | 4 x 95 |
| Frequency | Hz | 50 |
| Nominal current | A | 165 |
| DIMENSIONS | kg | 3 500 |
| Length x Width x Height | m | 3.10 × 2.40 × 3.00 |
| Sound pressure level at 1 meter | dB(A) | 73 |
| Empty weight | kg | 3 840 |
